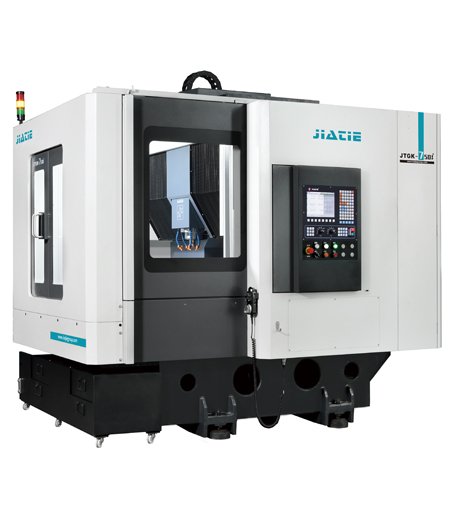

JTGK-750i High Speed Engraving and Milling CNC Machine

Download

FeaturesParameters

Features

- High stability

- High speed, excellent performance

- User-friendly operation

For Material

Carbon steel, alloy steel, aluminum alloy, copper

Applied Range

Mold, electrode, parts, etc

Standard Accessories

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Tool setting sensor

- Hand Wheel

- Spindle cooling system

Optional Accessories

- Automatic tool changer

- 4th axis

- Voltage stabilizer

- Oil mist collector

- Probe

Item	Parameter
X/Y/Z Travel	620/750/350mm
Work table size	620 x 750mm
Max load of table	500kg
Spindle power Max spindle speed	5.5kw/30000rpm or 5.5kw/24000rpm or 6.8kw/24000rpm or 12.5kw/24000rpm
Rapid traverse rate	16m/min
Cutting feed rate	10m/min
Positioning accuracy	0.008mm
Repeatability	0.005mm
Weight	3800kg
Machine dimension	2540 x 1950 x 2450mm
Power Supply	3PH-AC 380V ±5% 50Hz
