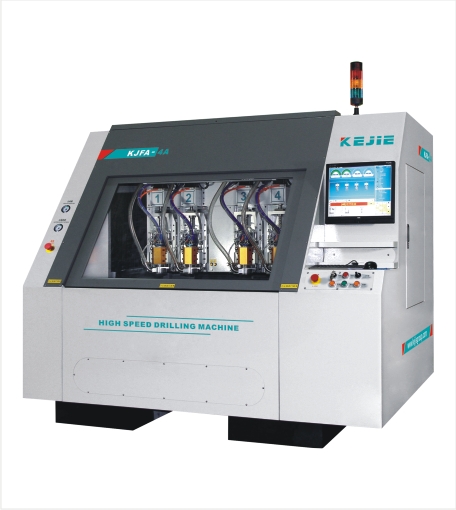

KJFA-4A High Speed 4-axis Drilling Machine

Download

FeaturesParameters

Features

- Granite machine bed, stable structure

- Modular customized design of the fixture for different machining requirements

- Auto-door, more effective

- Grating protection, more safe

Materials

- PCB, composites (plastic)

Applied Range

Hole drilling on the flat or circular surface of the shell for 3C products, PCB hole drilling

Standard Accessories

- CNC controller

- Air bearing spindle

- AC servo motor

- Precision ball screw and guide rail

- Linear encoder

- Auto protective door

- Laser tool setting sensor

- Voltage stabilizer

- Spindle cooling system

- Air drier

- Dust collecting hood

- Tool magazine

Optional Accessories

Fixture of workpiece(flat or 360°rotated)

Item		Parameter
Working area X/Y/Z		290/550/50mm
Quantity of machining stations		4 stations
Max spindle speed		160000rpm
Rapid traverse rate X/Y/Z		35/35/30 m/min
Cutting feed rate X/Y/Z		1.2/1.2/3m/min
Positioning accuracy		0.005mm
Repeatability		0.0025mm
Capacity of tool magazine		4 pcs
Machine weight		5000kg
Machine dimension		2095 X 1850 X 2155mm
Power Supply		3PH-AC 380V ±5% 50Hz
