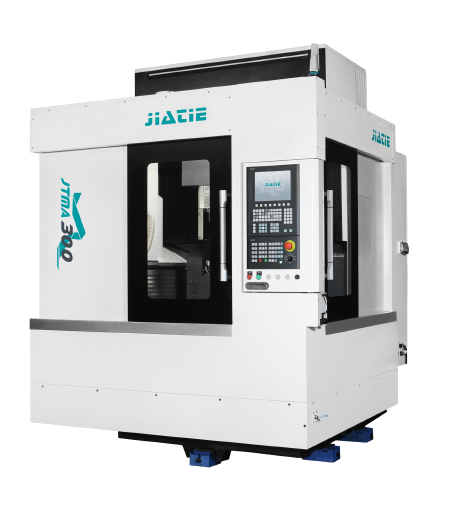

JTMA-300
Feature: - The whole series equips with RTCP function, ensure high-accuracy smooth 5-axis simultaneous machining - Advantageous gantry structure provides good dynamic properties and accuracy retention, long-term stable simultaneous machining accuracy - Large-torque or high rotation speed spindle, satisfies the machining requirements of different industries - JIATIE Direct Drive Rotary, fast response of workpiece rotary motion, accomplish reliable 5-axis simultaneous function
Machining material: copper, aluminum, steel, stainless steel, titanium, quenched material, high polymer material, etc Application area: accurate component parts of 5-axis simultaneous machining demand for aviation and aerospace, electric car, medical instrument, etc |
Item | Parameter |
X/Y/Z axis travel | 600/350/300 mm |
Maximum workpiece diameter | φ350 mm |
Maximum workpiece height | 270mm |
Maximum workload | 50kg |
Machine net dimension | 2200×2000×2600mm |
Machine net weight | 7000kg |
