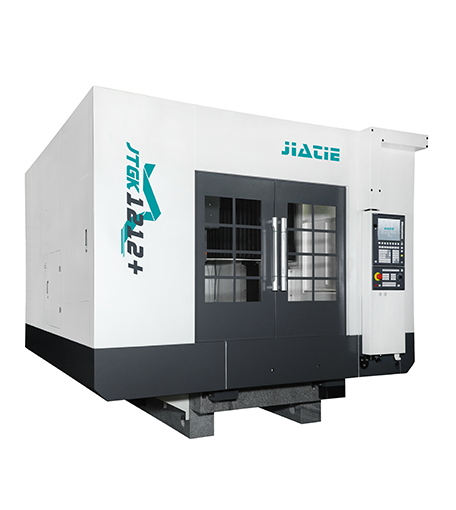

JTGK-1212+
Feature: - Higher cost-performance for massive machine, ensures machining surface quality and long-travel machining efficiency - High universality protection design, available for multiple material machining of glass, acrylic, aluminum, etc - Moving part reaches the most suitable weight by FEM analysis, improves feed speed and stability Machining material: glass, acrylic, copper, aluminum, etc Application area: the large-size machining demand of plate material, aviation and aerospace, automotive component, industrial equipment component, etc |
Item | Parameter |
X/Y/Z axis travel | 1200/1200/500 mm |
Worktable dimension | 1200×1200 mm |
Maximum workpiece height | 650mm |
Maximum workload | 200kg |
Machine net dimension | 2820×2620×2800mm |
Machine net weight | 6600kg |
