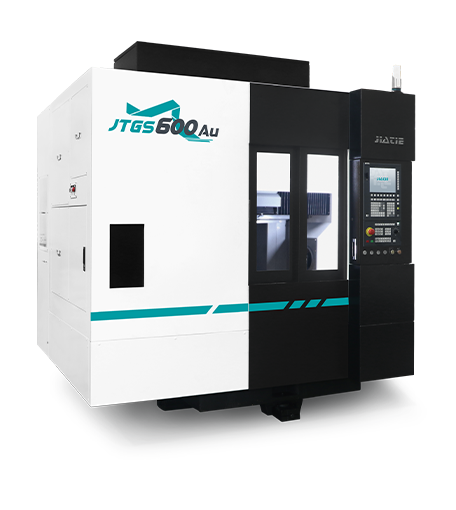

JTGS-600Au

Download

FeaturesParameters



Feature：

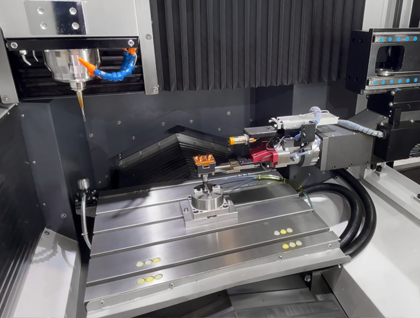

- Integrated part loading and unloading robot, storage, control box and control system, achieve continuous production without human interfering

- Small flooring, rapid part switch, high efficiency, low cost

- MES system connect with machine status, accomplishes task management and program transmission in real-time

Machining material：

graphite, copper, aluminum, steel, stainless steel, etc

Application area：

mold and component automatic machining

Item	Parameter
X/Y/Z axis travel	600/500/300 mm
Worktable dimension	630×500 mm
Maximum workpiece height	470mm
Maximum workload	300kg
Machine net dimension	2230×2140×2590mm
Machine net weight	6500kg
