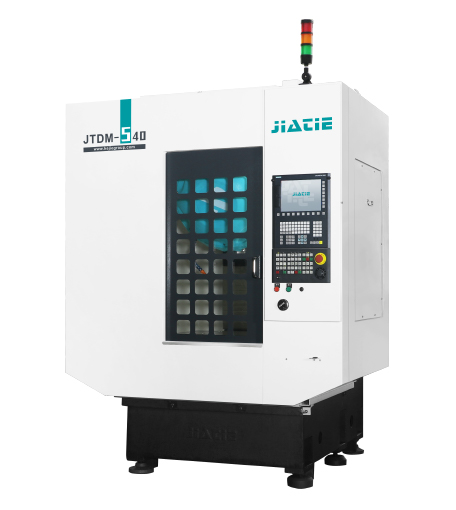

JTDM-540 Drilling and Milling Center

Download

FeaturesParameters

Features

- Good performance of drilling and tapping, especially milling

- Accurate positioning to ensure machining quality

- Servo ATC to realize much faster tool changing

- High rapid traverse rate to shorten the cycle time

- High speed, ideal for batch production

- Favorable man-machine interface, easy operation

For Material

Carbon steel, alloy steel, copper, aluminum alloy, composites (plastic)

Applied Range

The machining of box, cover, board, housing, disk, etc in the industries of digital products, automobile, instruments, electrical appliance, aviation, aerospace, machine manufacture, etc.

Standard Accessories

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Automatic tool changer

Optional Accessories

- 4^th axis

- 4.5^th axis

- Probe

- Voltage stabilizer

- Oil mist collector

Item	Parameter
Working area X/Y/Z	500/400/320mm
Work table size	620 x 400mm
Max load of table	250kg
Spindle power Max spindle speed	7.5kw/24000rpm 8kw/24000rpm
Rapid traverse rate	48m/min
Cutting feed rate	30m/min
Positioning accuracy	0.006mm
Repeatability	0.004mm
Weight	2800kg
Machine dimension	1620×2100×2490 mm
Power Supply	3PH-AC 380V ±5% 50Hz
