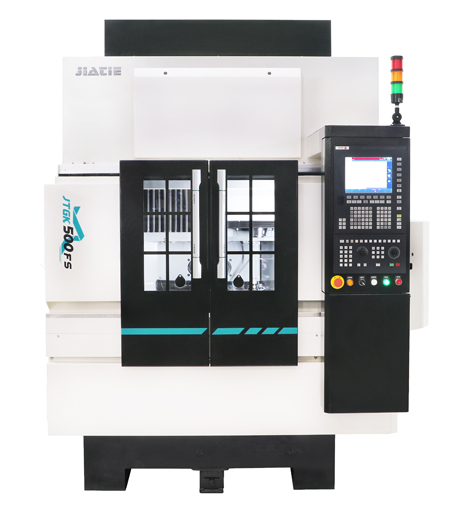

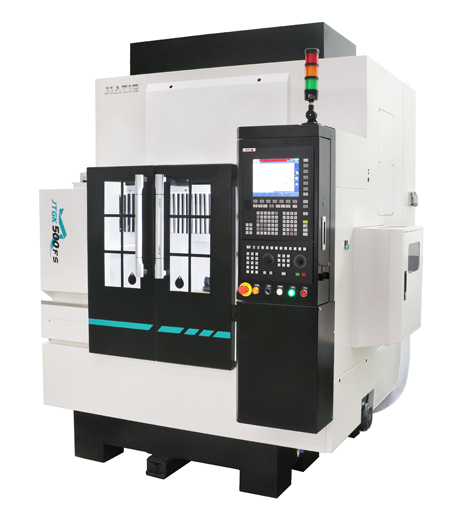

JTGK-500FS Graphite Machining Center
FeaturesParameters
Features
- Suitable for graphite dry cutting
- Box-type structural design and unique damping characteristics for superior dynamic machining performance
- Fully sealed protective hood and dedicated dust collector to effectively reduce dust leakage and ensure good dust removal effect
- Special protection measures are taken for axis movement system to ensure the lifetime of moving parts
- Many optional configurations can be selected for different functional requirements
For Material
Graphite
Applied Range
Graphite mould, electrode, parts
Standard Accessories
- High speed CNC controller
- High speed spindle
- AC servo motor
- High precision ball screw and guide rail
- Tool magazine
- Tool sensor
- Handwheel
- Spindle cooling system
Optional Accessories
- Dust collector
- Voltage stabilizer
- Probe
- 4th axis
- Automatic door
Item | Parameter |
Working area X/Y/Z | 500/400/250mm |
Work table size | 600×400mm |
Max load of table | 200kg |
Spindle power Max spindle speed | 6.0kw/32000rpm |
Rapid traverse rate | 15m/min |
Cutting feed rate | 10m/min |
Positioning accuracy |
0.008mm 0.006mm (full closed loop) |
Repeatability |
0.004mm 0.003mm (full closed loop) |
Weight | 5700kg |
Machine dimension | 2000×1900×2450mm |
Power supply | 3PH-AC 380V ±5% 50Hz
|
