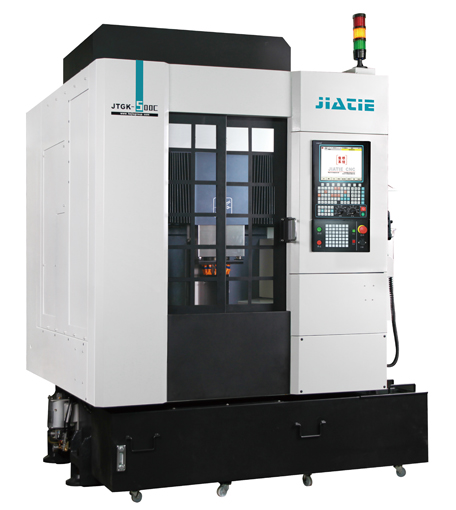

JTGK-500C Specular Chamfering CNC Machine
FeaturesParameters
Features
- Specular effect can be realized on workpiece surface
- High speed, high precision
- Levelμchip filtration system
For Material
Aluminum alloy, acrylic, copper, stainless steel
Applied Range
Specular chamfering on the housing of electronic products, mold making
Standard Accessories
- High speed CNC controller
- High speed spindle
- AC servo motor
- Precision ball screw and guide rail
- Tool setting sensor
- Hand Wheel
- Spindle cooling system
- Automatic tool changer
Optional Accessories
- 4th axis
- Voltage stabilizer
- Oil mist collector
- Probe
- Ultra-precision filtration system
Item | Parameter |
Working area X/Y/Z | 500/400/230mm |
Work table size | 500 x 400mm |
Max load of table | 150kg |
Spindle power Max spindle speed | 4.0kw/30000rpm |
Rapid traverse rate | 12m/min |
Cutting feed rate | 10m/min |
Positioning accuracy | 0.008mm |
Repeatability | 0.004mm |
Weight | 3000kg |
Machine dimension | 1750 x 1800 x 2300mm |
Power Supply | 3PH-AC 380V ±5% 50Hz |
