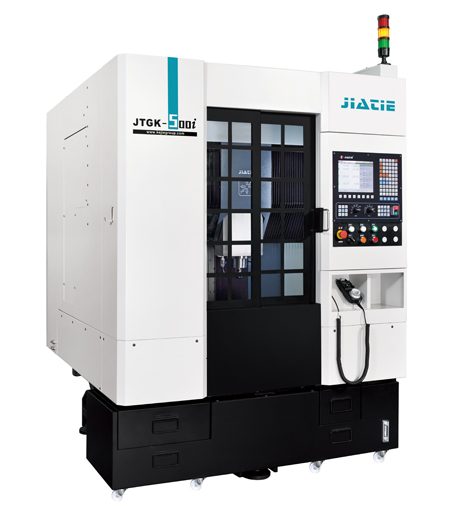

JTGK-500i High Speed Engraving and Milling CNC Machine

Download

FeaturesParameters

Features

- Optimized design, more stable and reliable

- Excellent machining performance

- Concise all-in-one structure

For Material

Nonmetal, copper, aluminum alloy, carbon steel, alloy steel

Applied Range

Electrode, mold, hardware, artware, machine parts, equipment manufacture, etc

Standard Accessories

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Tool setting sensor

- Hand Wheel

- Spindle cooling system

Optional Accessories

- Automatic tool changer

- Voltage stabilizer

- Oil mist collector

- Probe

Item	Parameter
Working area X/Y/Z	500/400/230mm
Work table size	500 x 400mm
Max load of table	150kg
Spindle power Max spindle speed	4.0kw/30000rpm or 3.7kw/24000rpm
Rapid traverse rate	12m/min
Cutting feed rate	10m/min
Positioning accuracy	0.008mm
Repeatability	0.005mm
Weight	2700kg
Machine dimension	1800 x 1600 x 2200mm
Power Supply	3PH-AC 380V ±5% 50Hz
